Suction line filters are available for standard and flame-resistant hydraulic oil. You can select from various sizes and filtration levels.

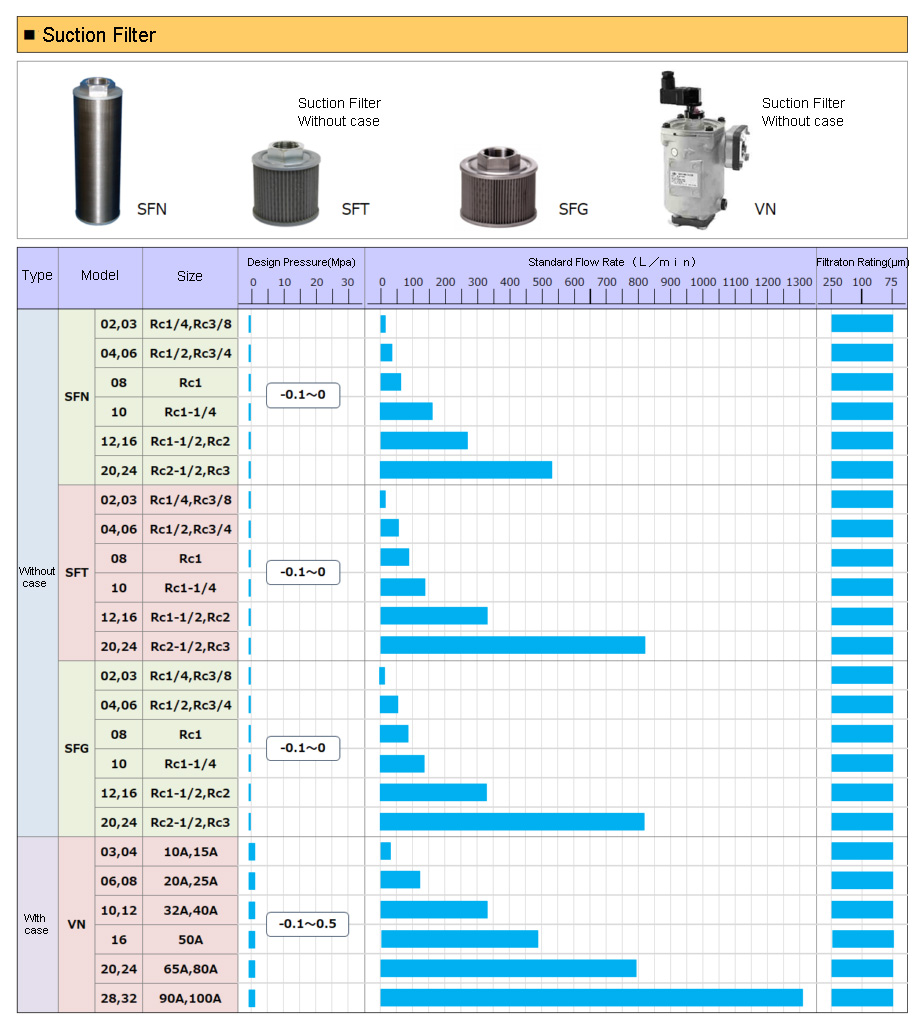

| Suction filter (No case) | |||
| Model | Design pressure (MPaG) | Caliber | Characteristics |
| SFN | -0.1 to 0 | Rc1/4 to Rc3 | Notch wire (SUS) |
| SFT | -0.1 to 0 | Rc1/4 to Rc3 | Wire mesh (SUS) |
| SFG | -0.1 to 0 | Rc1/4 to Rc3 | Wire mesh (SUS), All stainless steel |
| SFR | -0.1 to 0 | 25A to 80A | Wire mesh (SUS) |
| Suction filter (with case) | |||
| Model type | Design pressure (MPaG) | Bore diameter | Characteristics |
| VN | -0.1 to 0.5 | 10A to 100A | L-type, upward extraction |
| ISH | -0.1 to 0.5 | 10A to 80A | L-type, horizontal extraction |
| STU | -0.1 to 0 | 10A to 80A | L-type, horizontal extraction |
| TSF | -0.1 to 0.5 | 20A to 40A | Tank-top type |
For inquiries about hydraulic filters, please feel free to contact Motoyama!
Our professional and knowledgeable staff will propose hydraulic products that meet your needs and equipment specifications.
