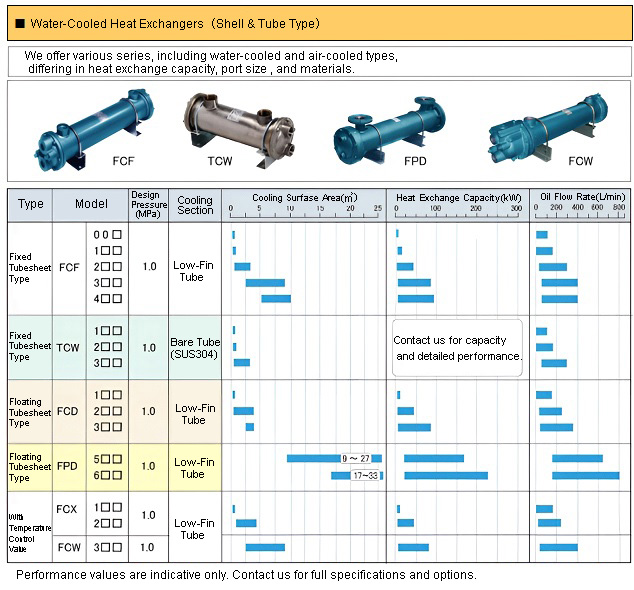

Water-cooled Heat Exchanger (Shell & Tube type)

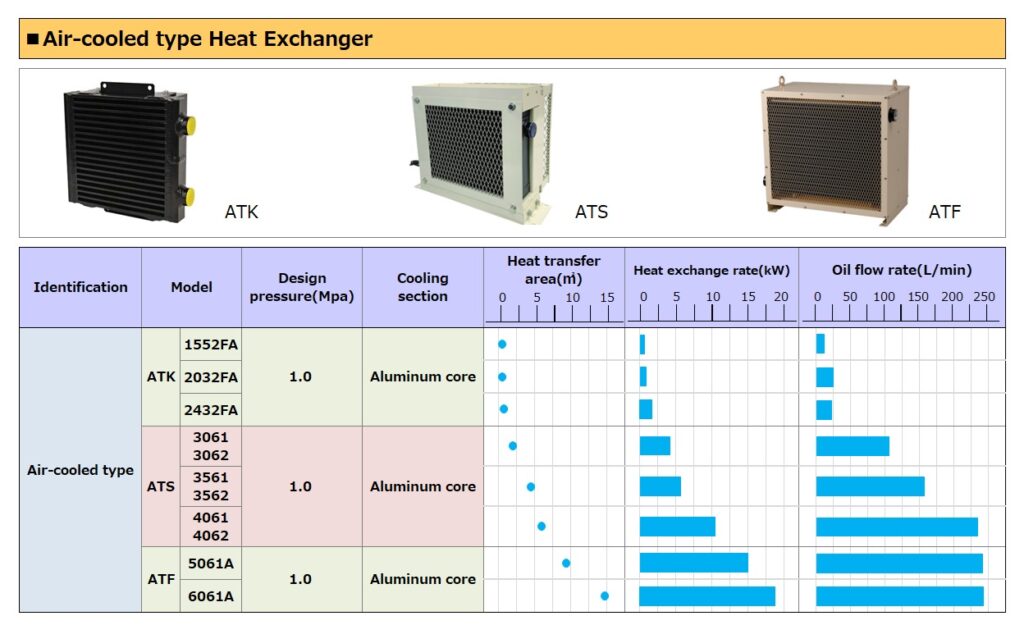

Air-cooled type Heat Exchanger
| Water-cooled heat exchanger (shell & tube type) | |||
| Model | Heat transfer area (m2) | Shell side flow rate (L/min) | Characteristics |
| FCF | 0.15~10 | ~400 | Conpact, fixed tube sheet type φ9 low fin tube |
| TCW | 0.15~3.3 | ~300 | Conpact, fixed tube sheet type, stainless steel φ9 stainless steel bare tube |
| FCD | 0.4~5.5 | ~360 | Conpact, floating tube sheet type φ9 low fin tube |
| FCDB | 0.4~5.5 | ~360 | Conpact, fixed tube sheet type, sea water φ9 low fin tube |
| FPD | 9~33 | 150~800 | Medium-size, Floating tube sheet type φ12.7 low fin tube |
| FTC(B) | 6~71 | 50~800 | Floating tube sheet type, sea water φ12.7 low fin tube, Duplex type |
| FCU | 0.4~2.8 | ~240 | Tank insert type, U-shaped tube φ12.7 low fin tube |
| FCX | 0.4~3.5 | ~240 | Fixed tube sheet type, with thermostat φ9 low fin tube |
| FCW | 2.5~8 | 50~350 | Floating tube sheet type, with thermostat φ9 low fin tube |
| Air-cooled heat exchanger | |||
| Model | Heat transfer area (m2) | Shell side flow rate (L/min) | Characteristics |
| ATK | 1.18~2.36 | ~20 | Compact, 1PASS |
| ATS | 2.9~66.5 | ~350 | Medium and Large, 1PASS/2PASS |
| ATF | 10.2~14.2 | ~240 | Medium, 1PASS |
If you have any questions about oil coolers, please feel free to contact Motoyama!
Our professional and knowledgeable staff will propose hydraulic products that meet your needs and equipment specifications.
